Proposed temporary structure for Princeton University during construction of the Arts and Transit Project (2013 - 2017).

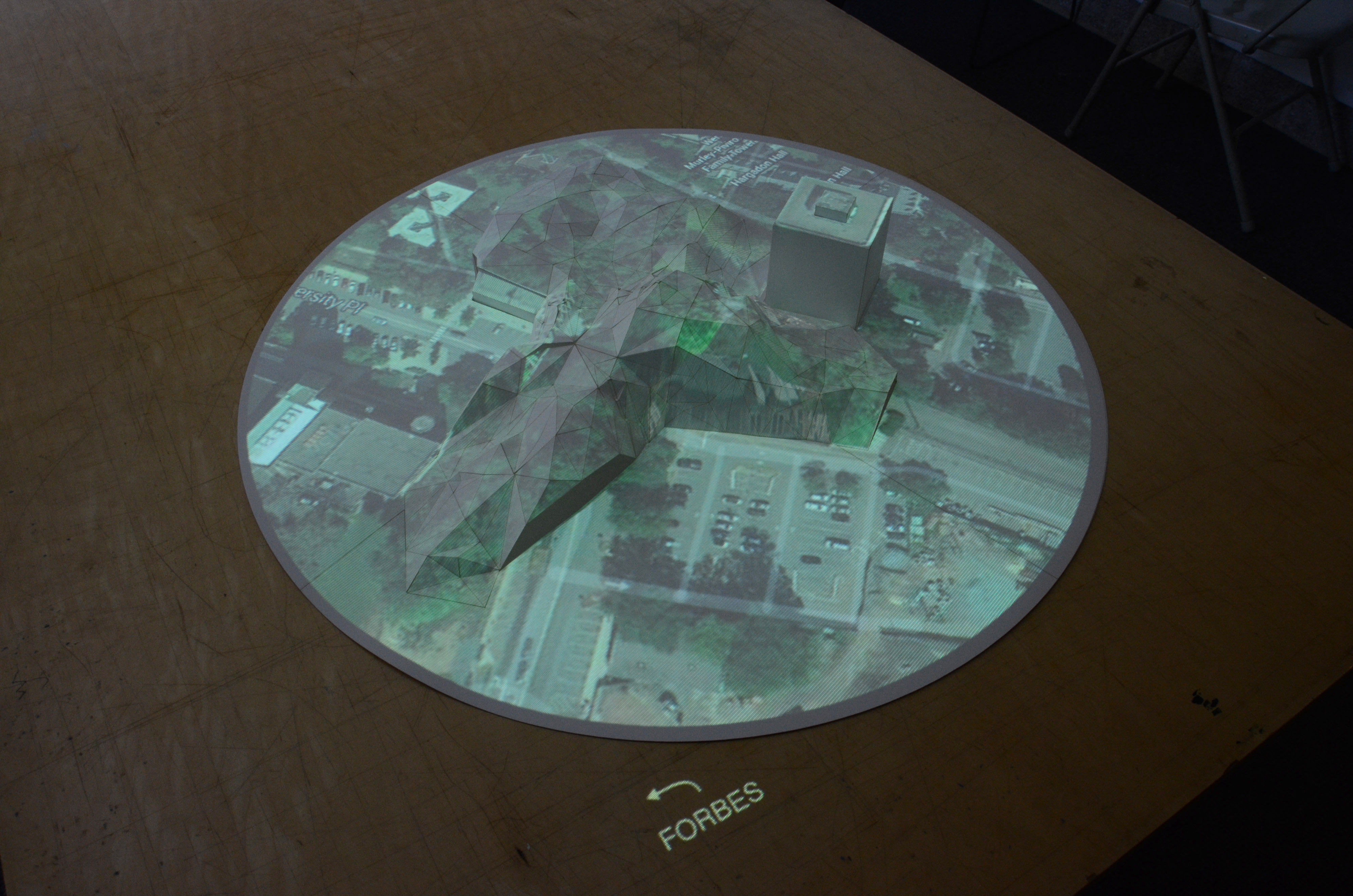

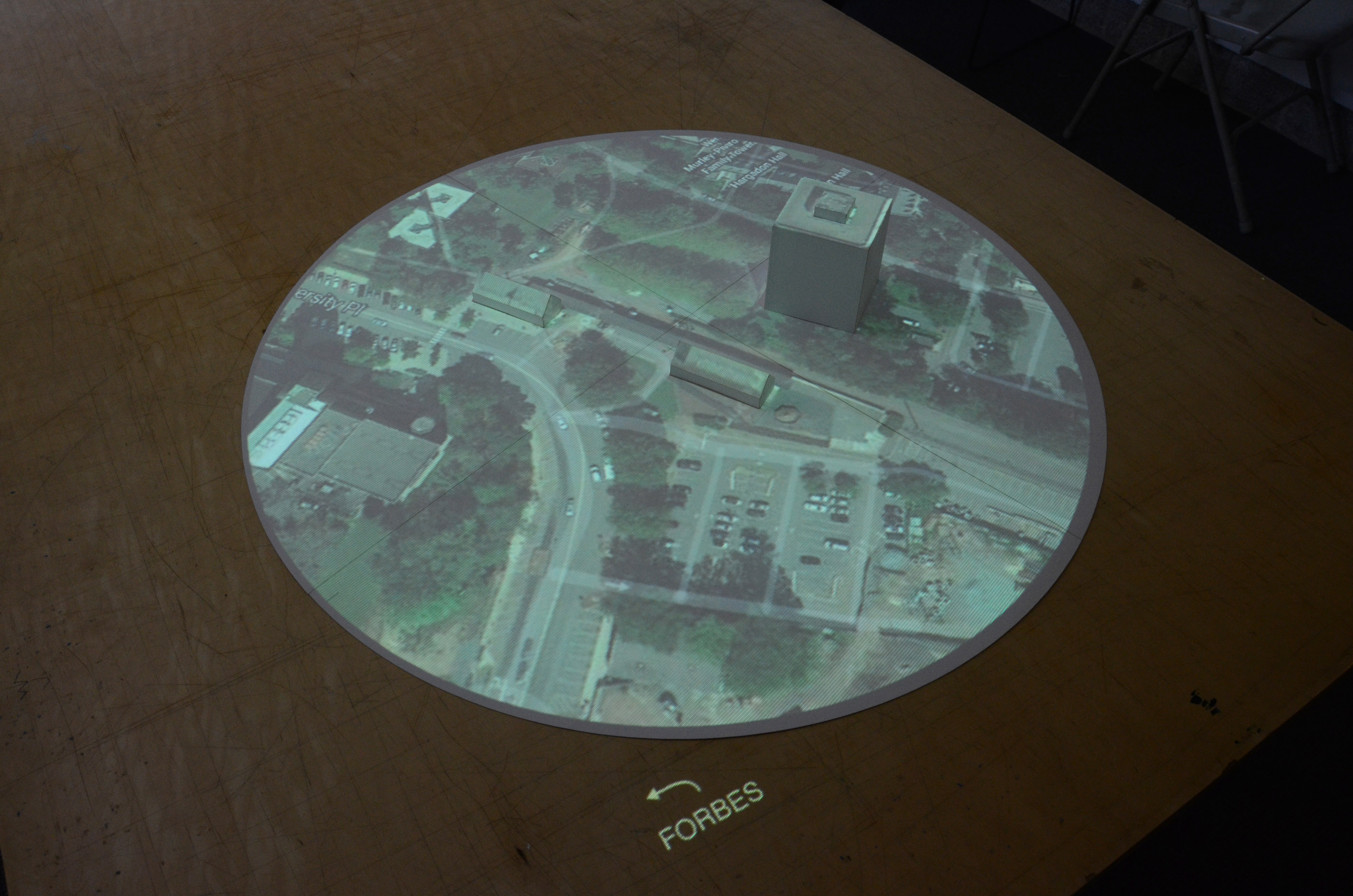

Site.

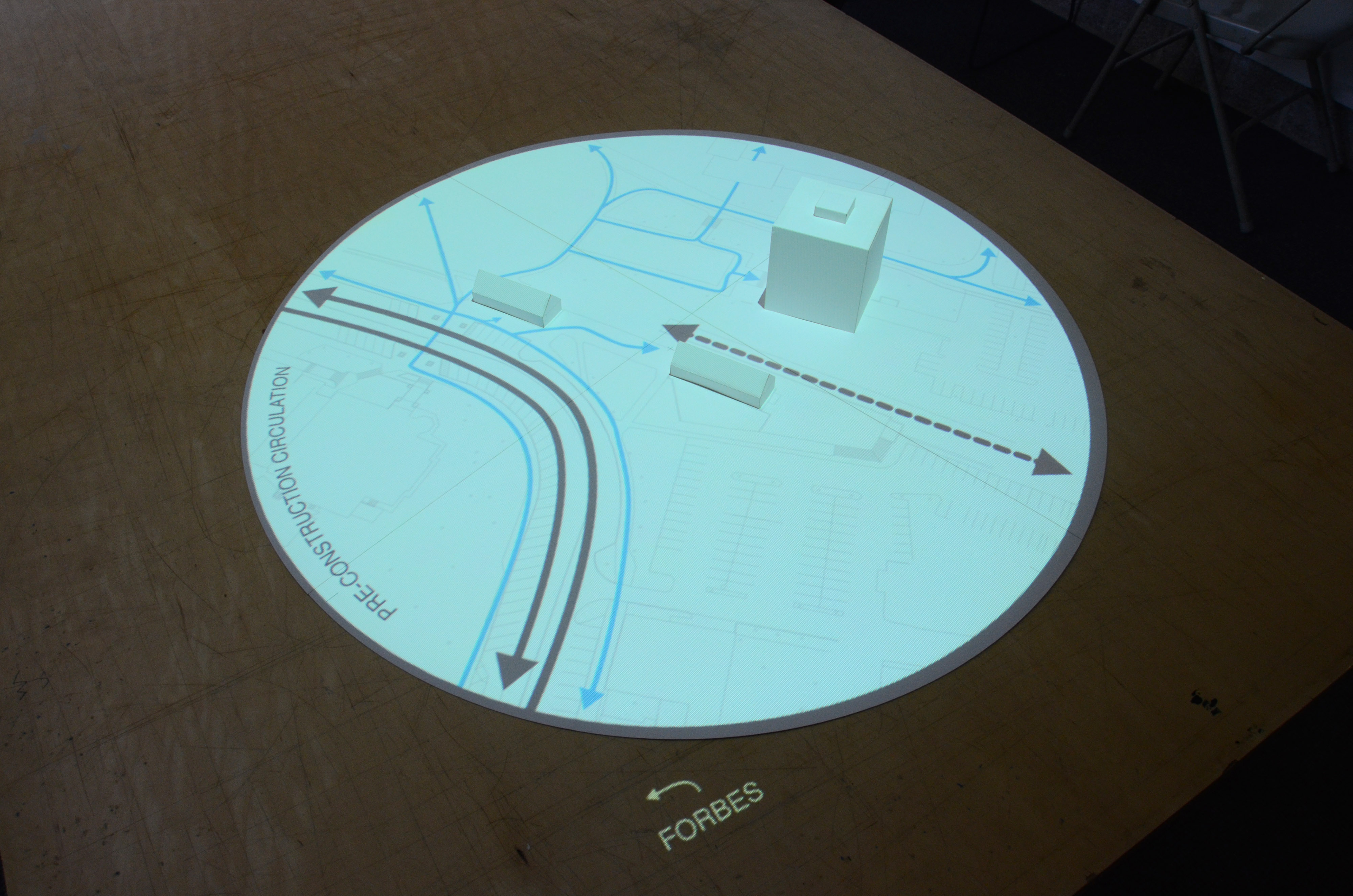

Pre-construction circulation routes.

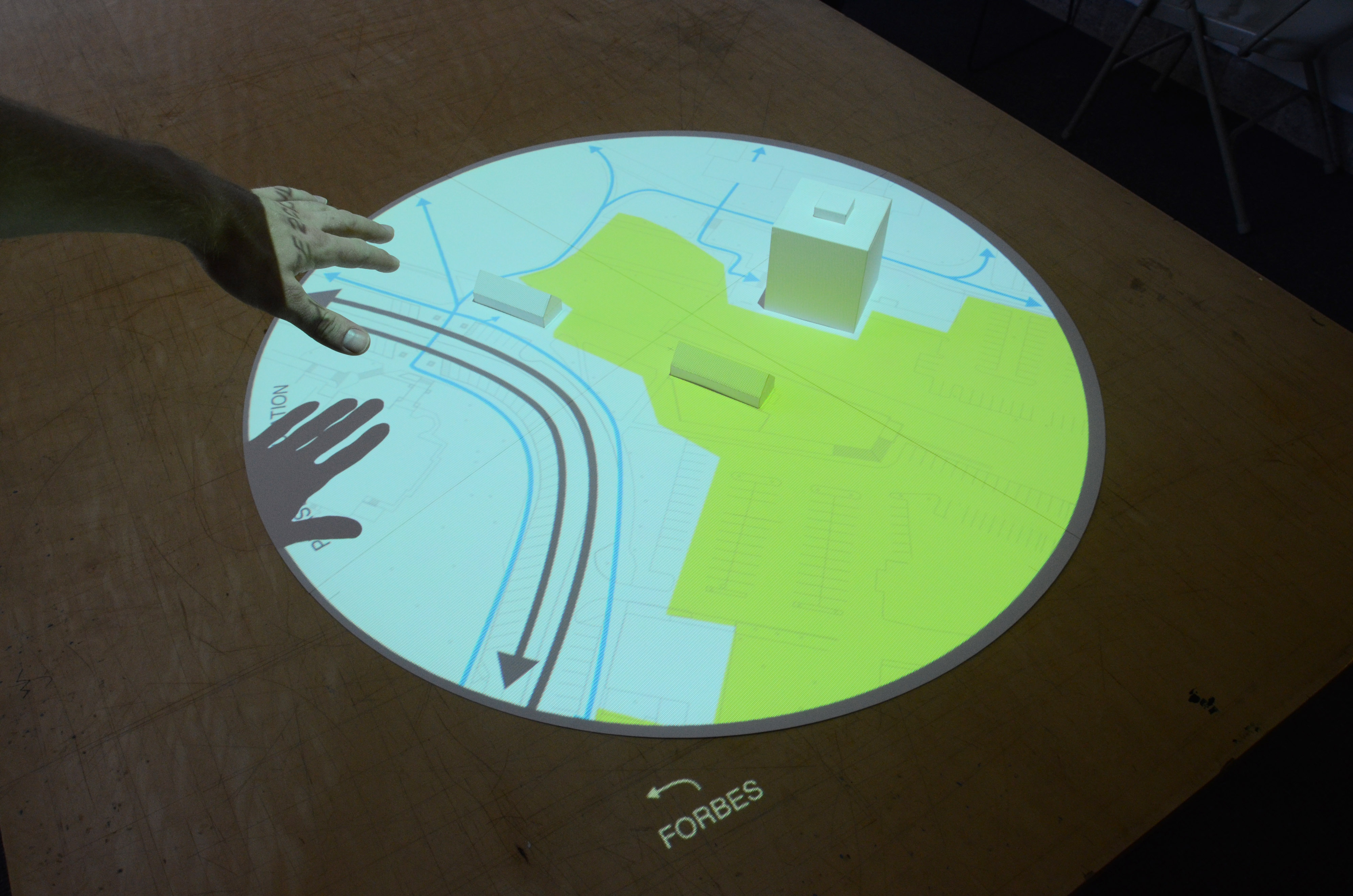

Phase 1 Arts and Transit Project construction.

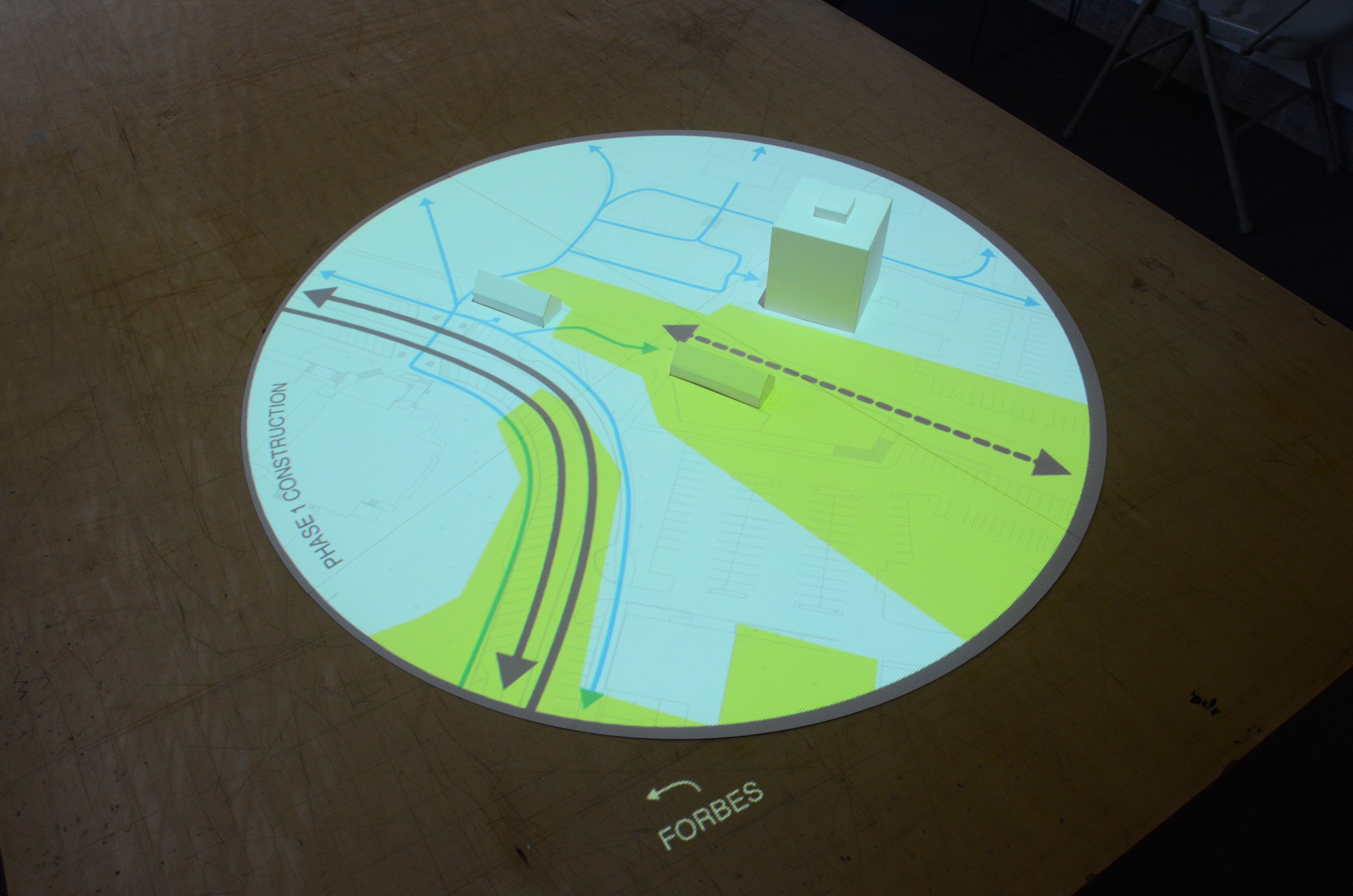

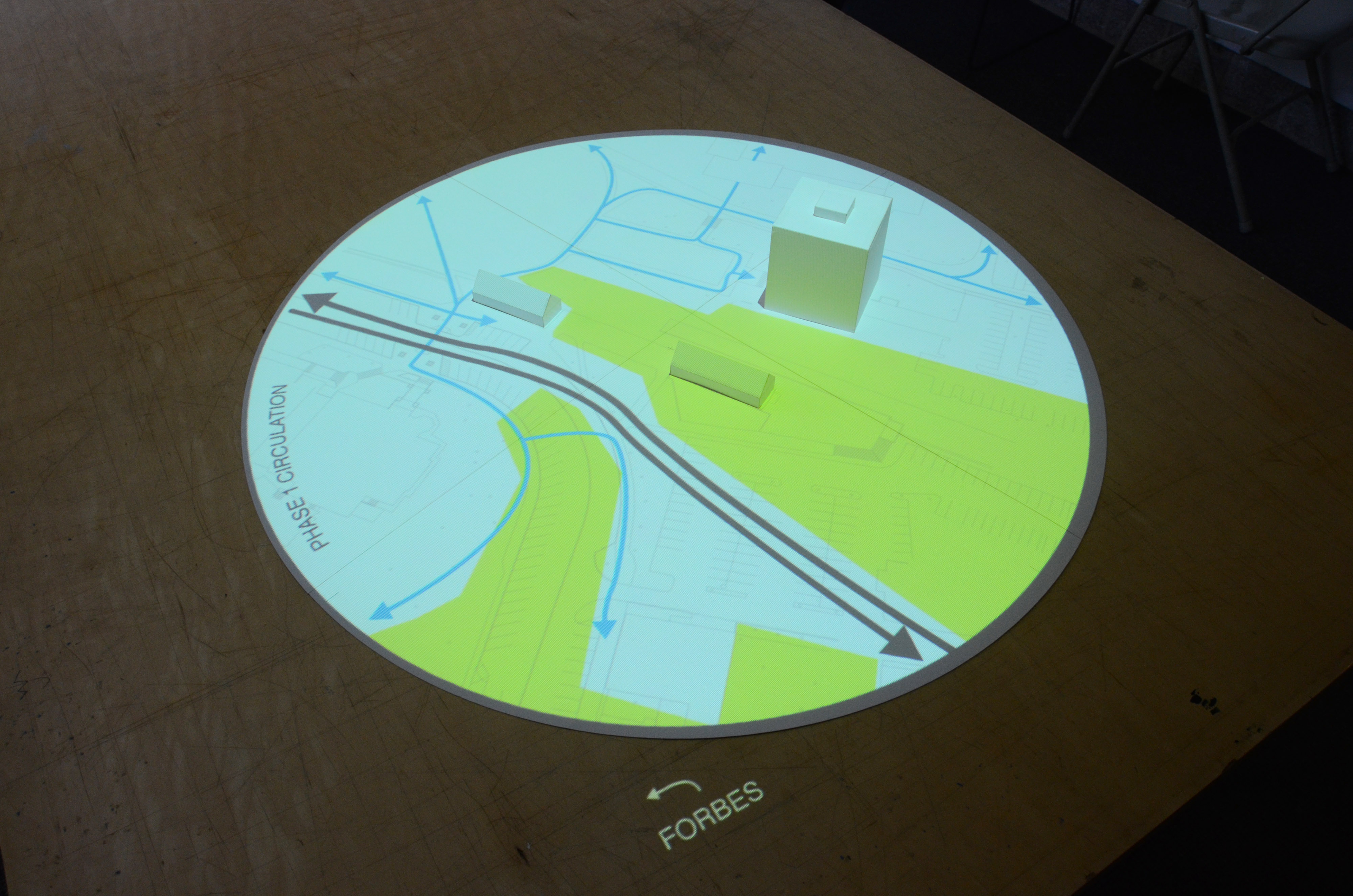

Phase 1 university re-routed circulation.
Phase 2 Arts and Transit Project construction.
Phase 2 university re-routed circulation.

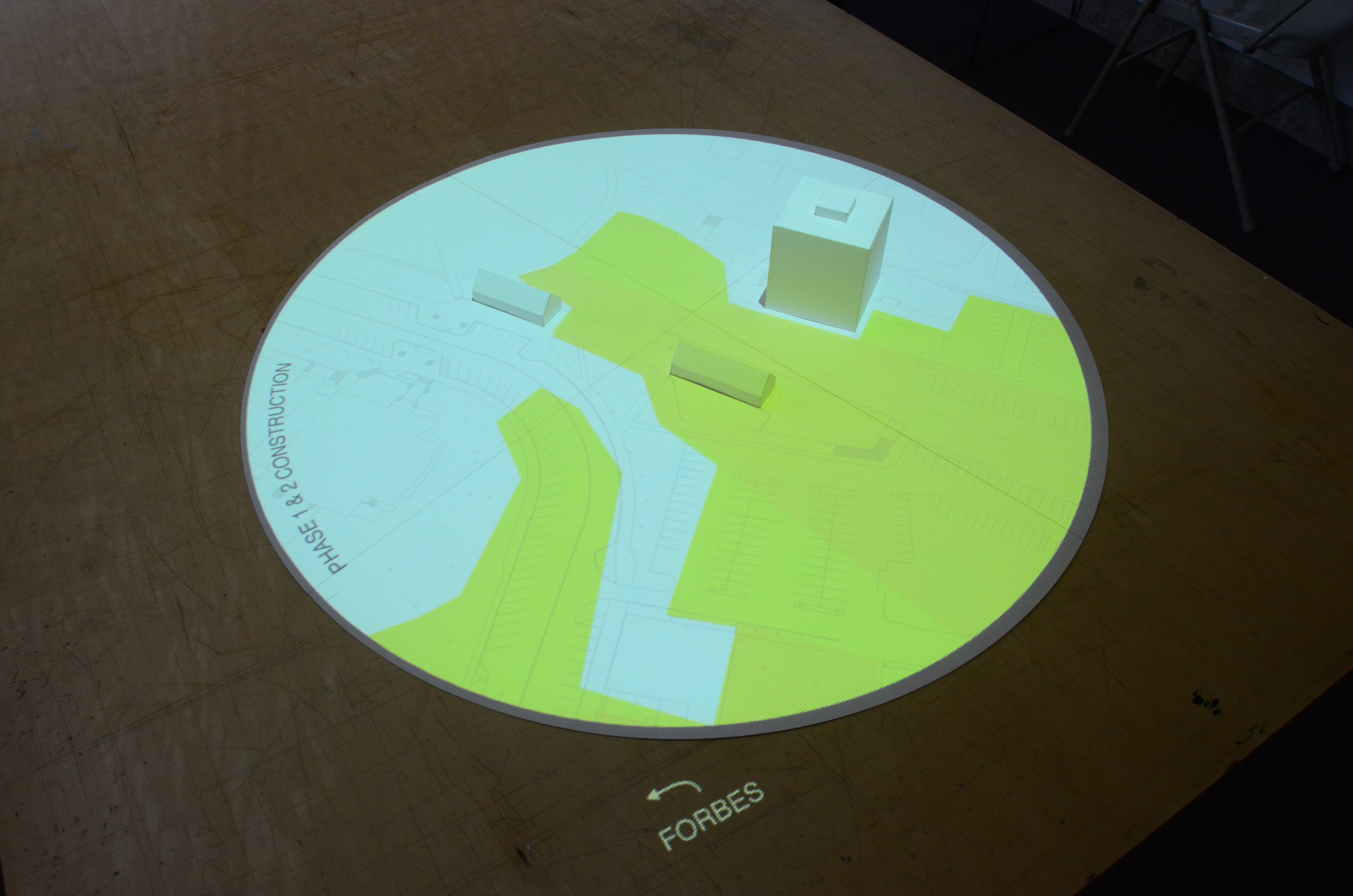

Combined area lost to Arts and Transit Project construction.

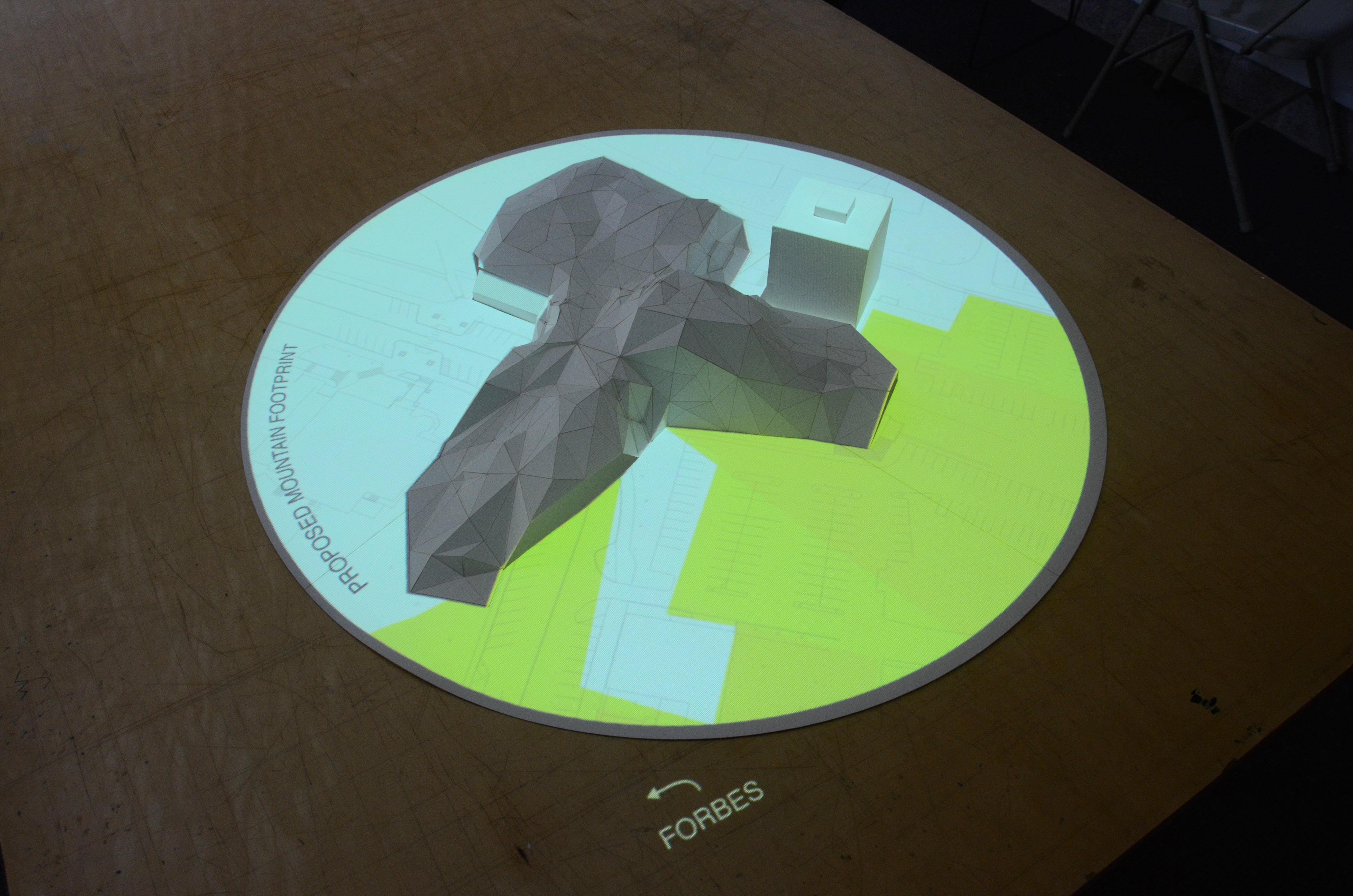

Proposed mountain footprint (re-acuires lost programatic area and improves circulation during construction)

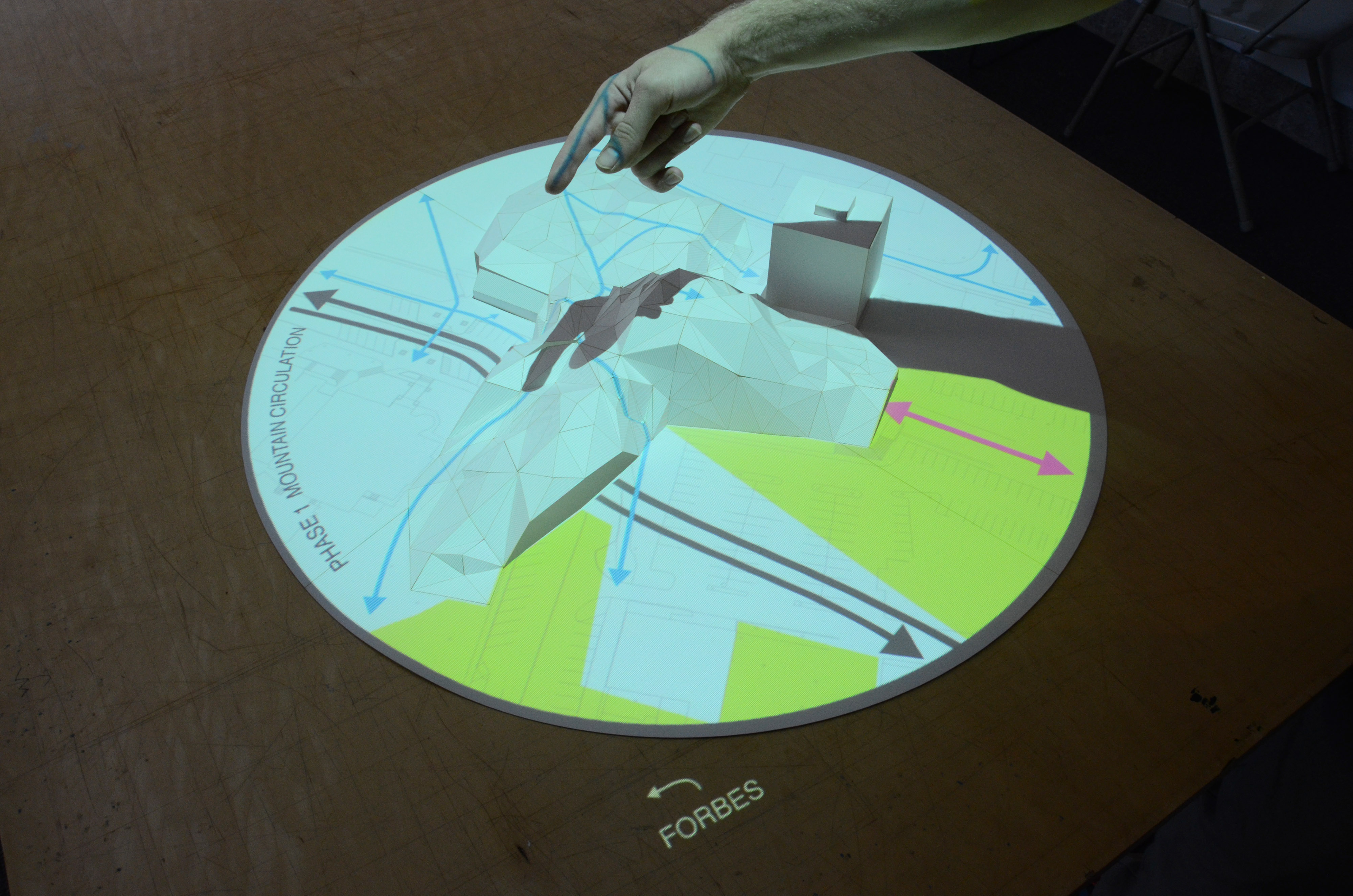

Improved phase 1 construction circulation routes.

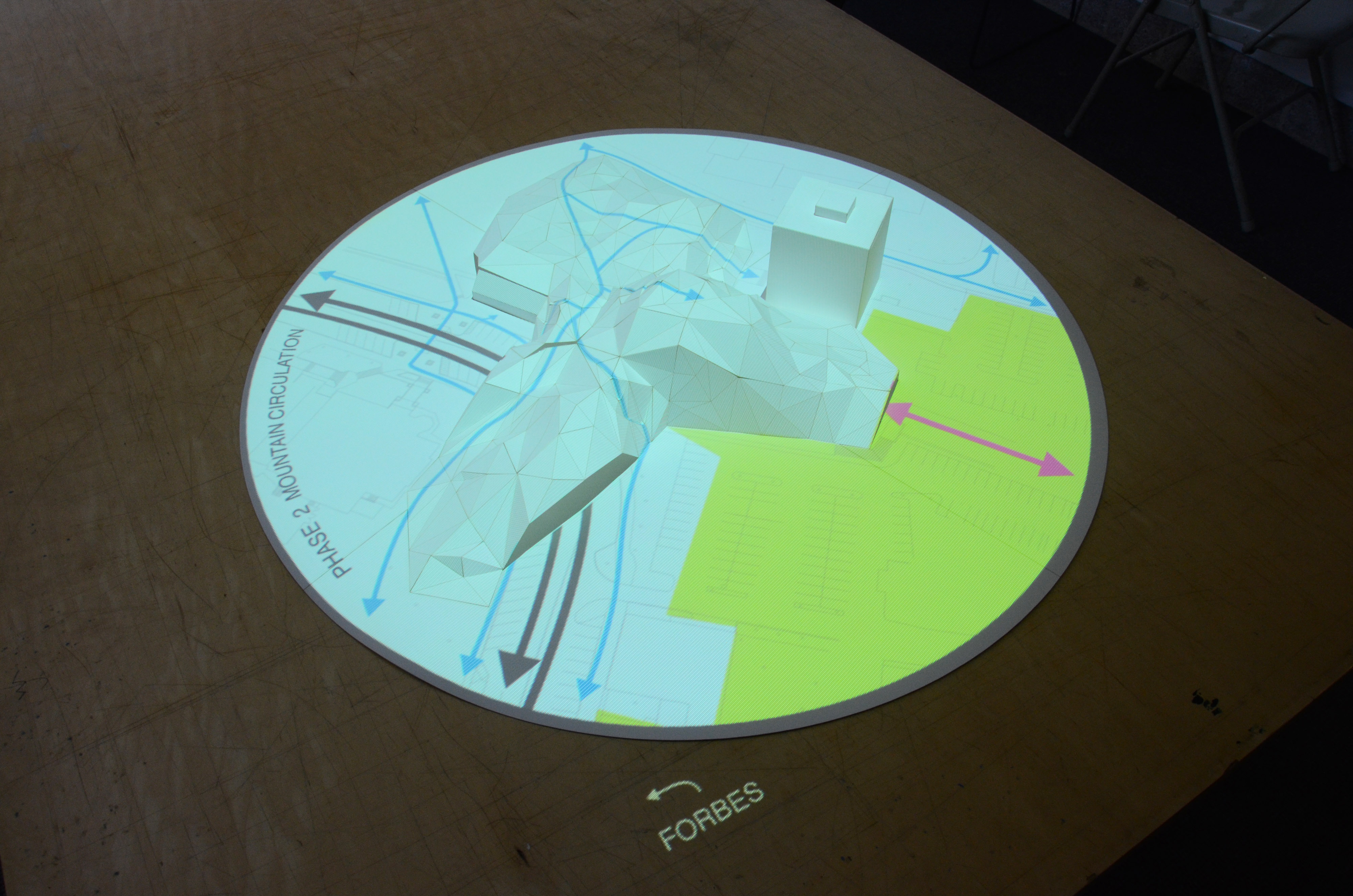

Improved phase 2 construction circulation routes.

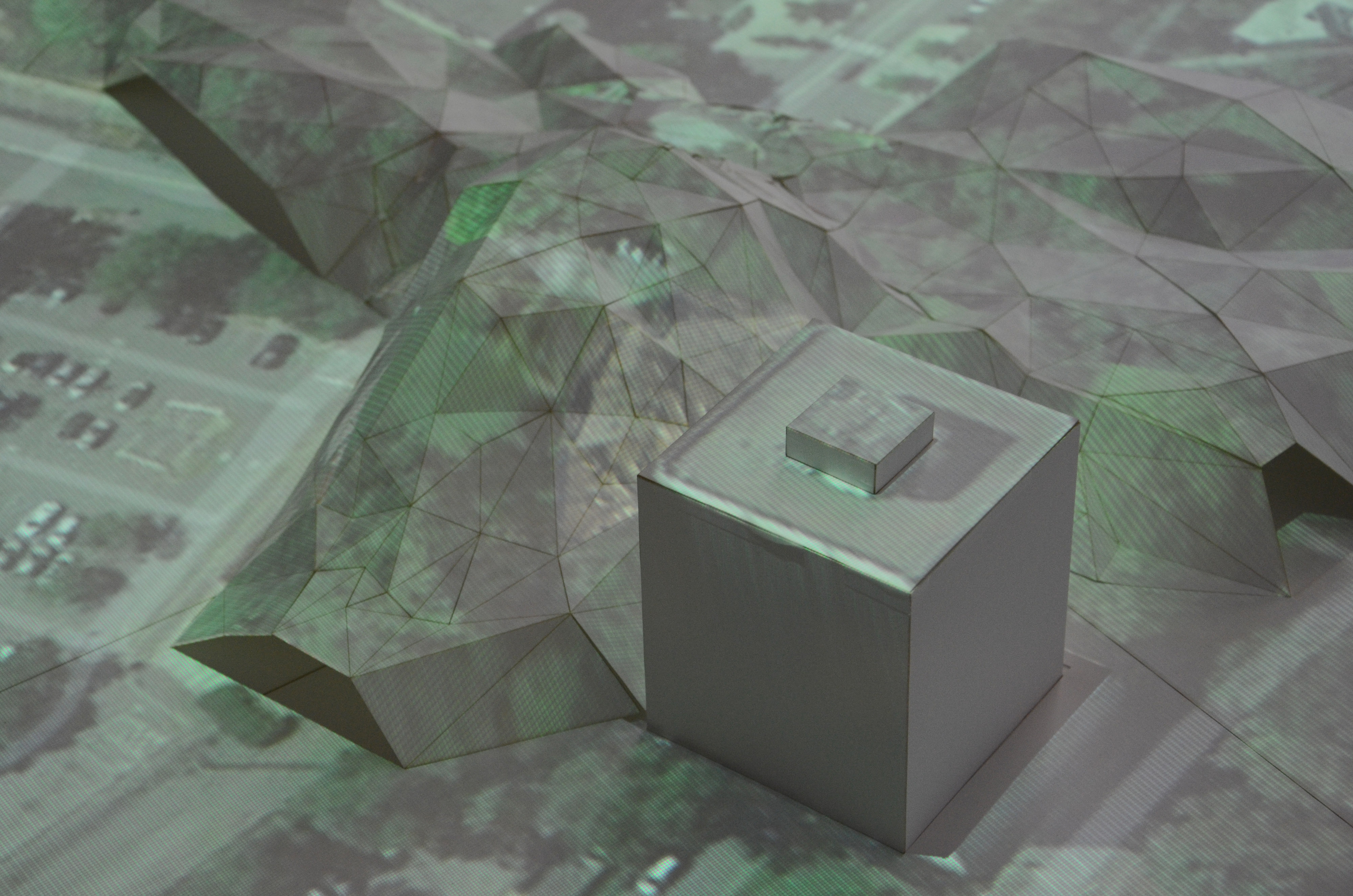

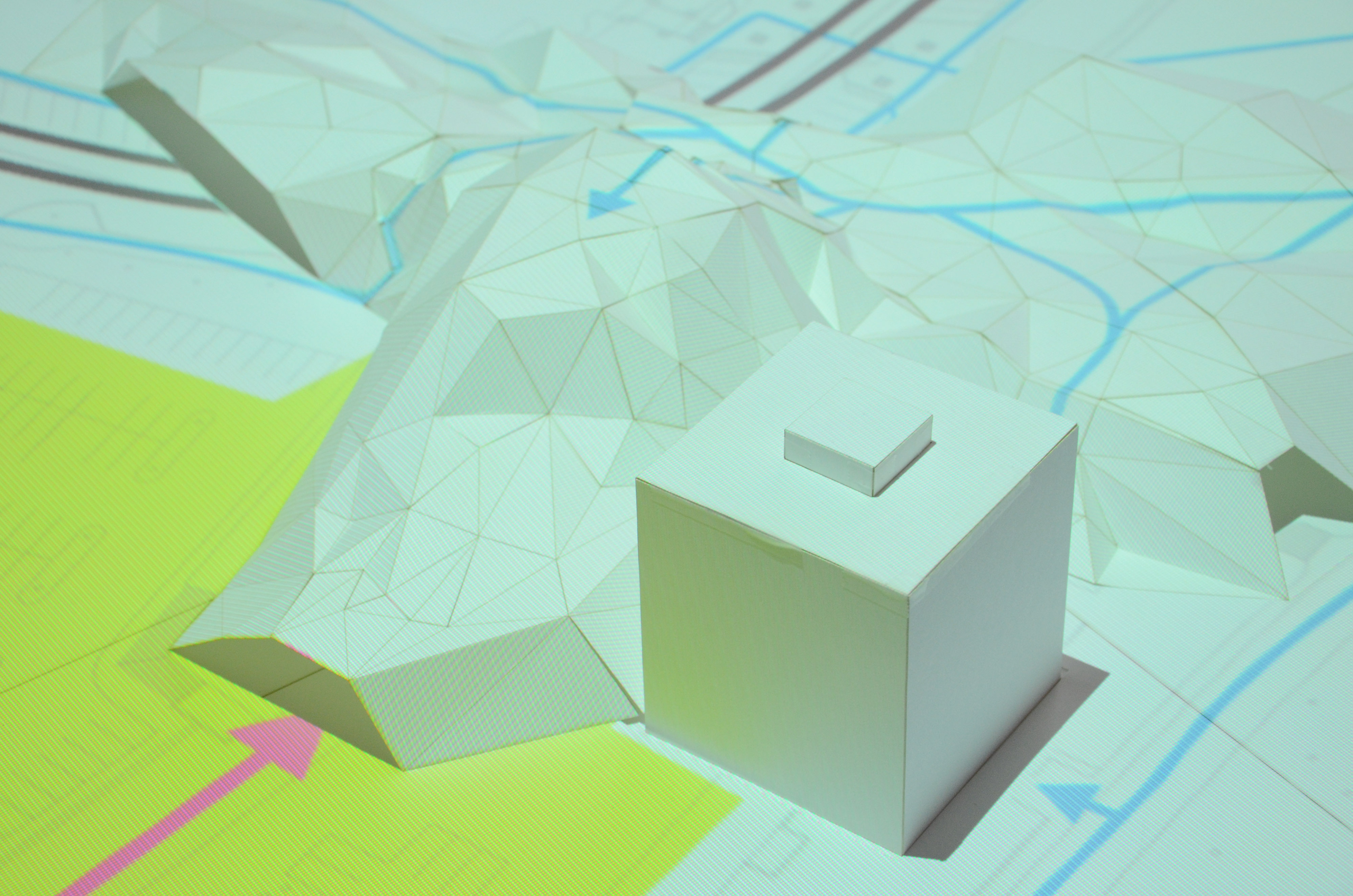

Detail.
Improved post-construction circulation routes.
Occupiable surface area.
Potential over-programing. Gathering / party space.

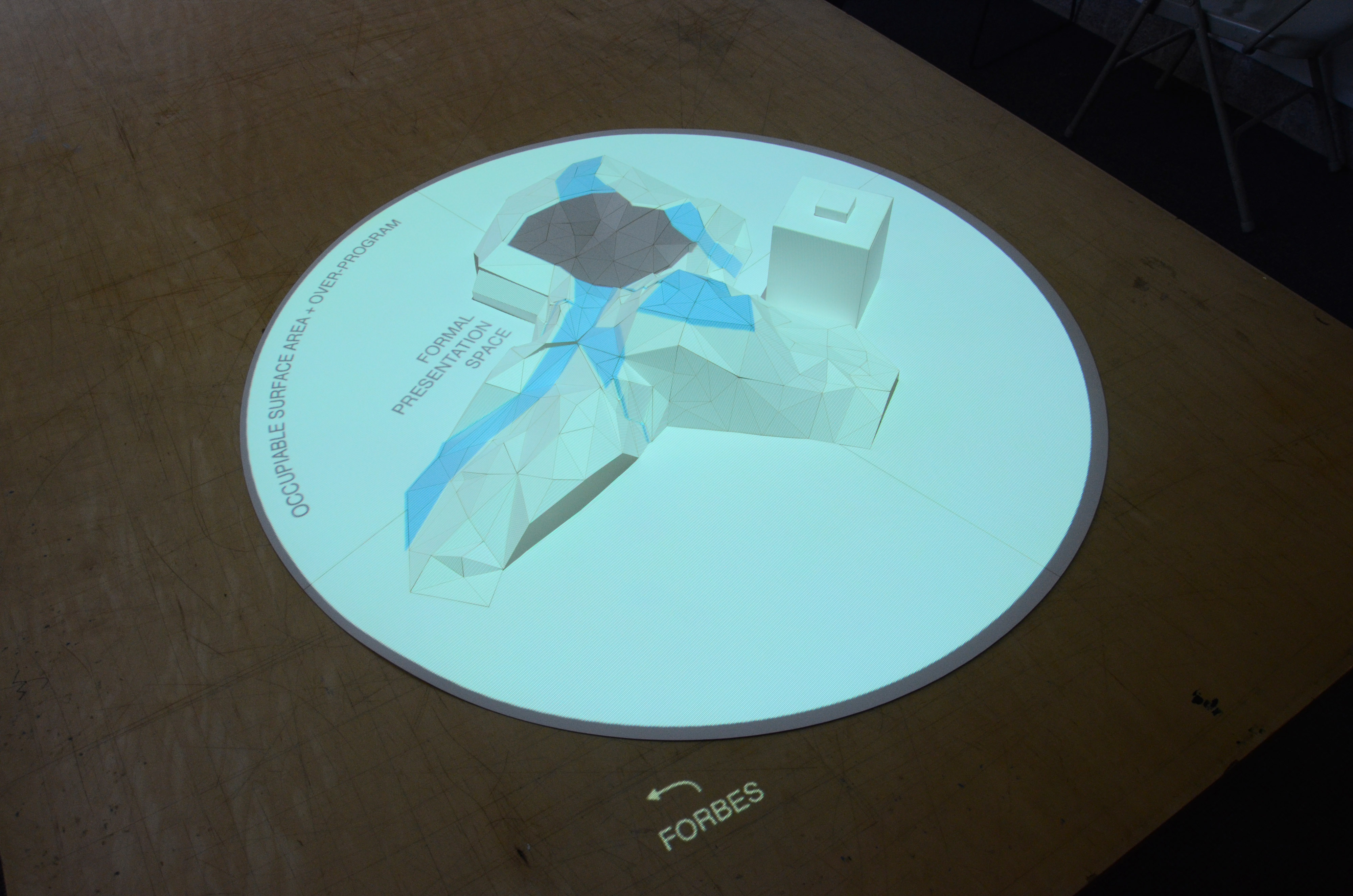

Potential over-programing. Formal presentation / exhibition space.

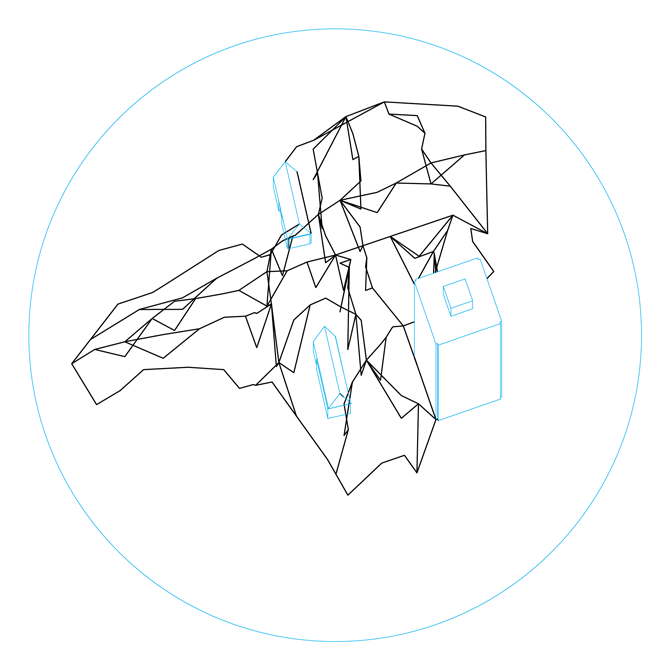

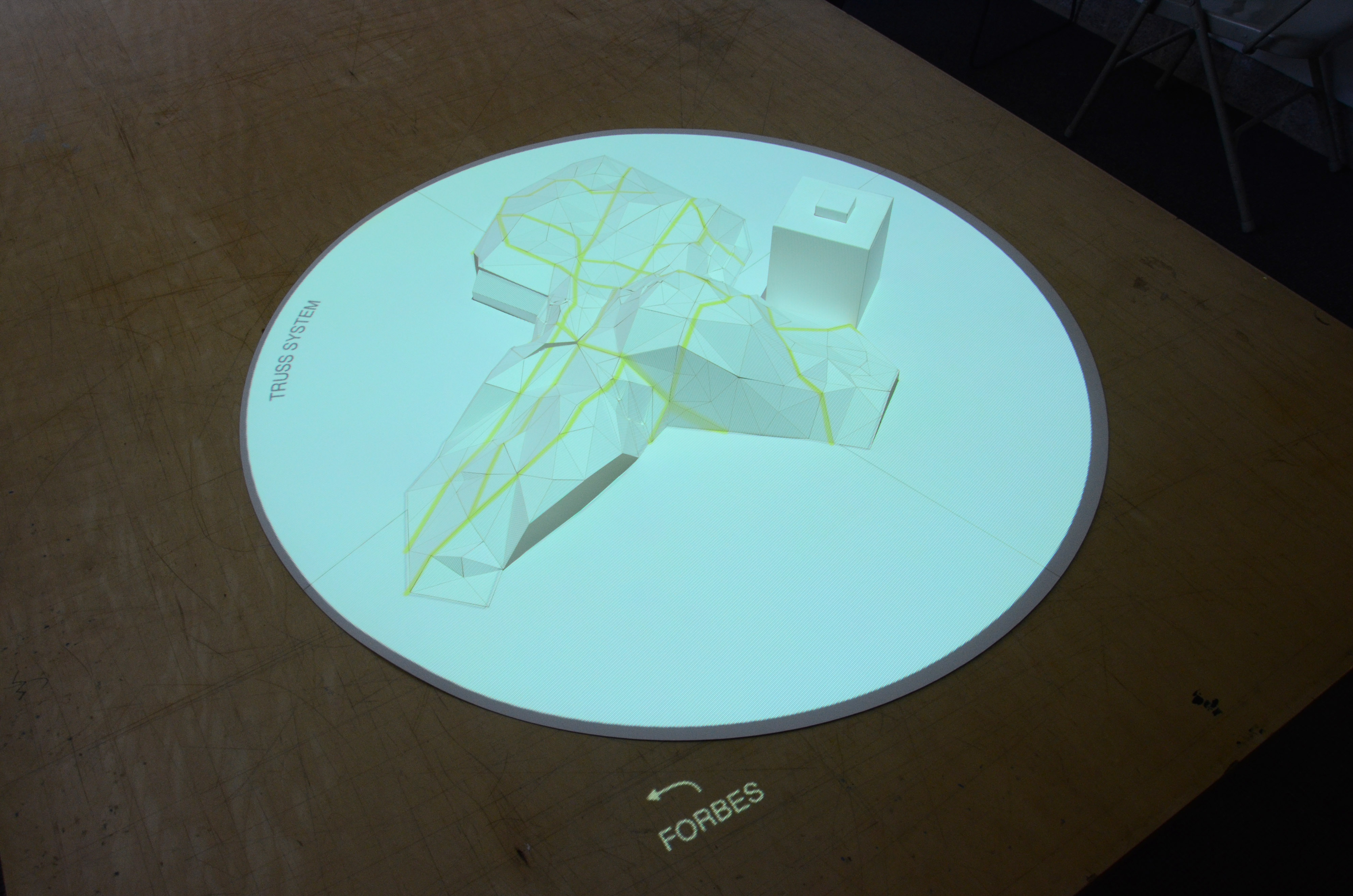

Truss system.
![](https://freight.cargo.site/t/original/i/63eb940a64b32afffb67fc4d96d22b11b520e22043ac4526376b69260e907122/TrussesGIF_o.gif)
Truss system visualization.

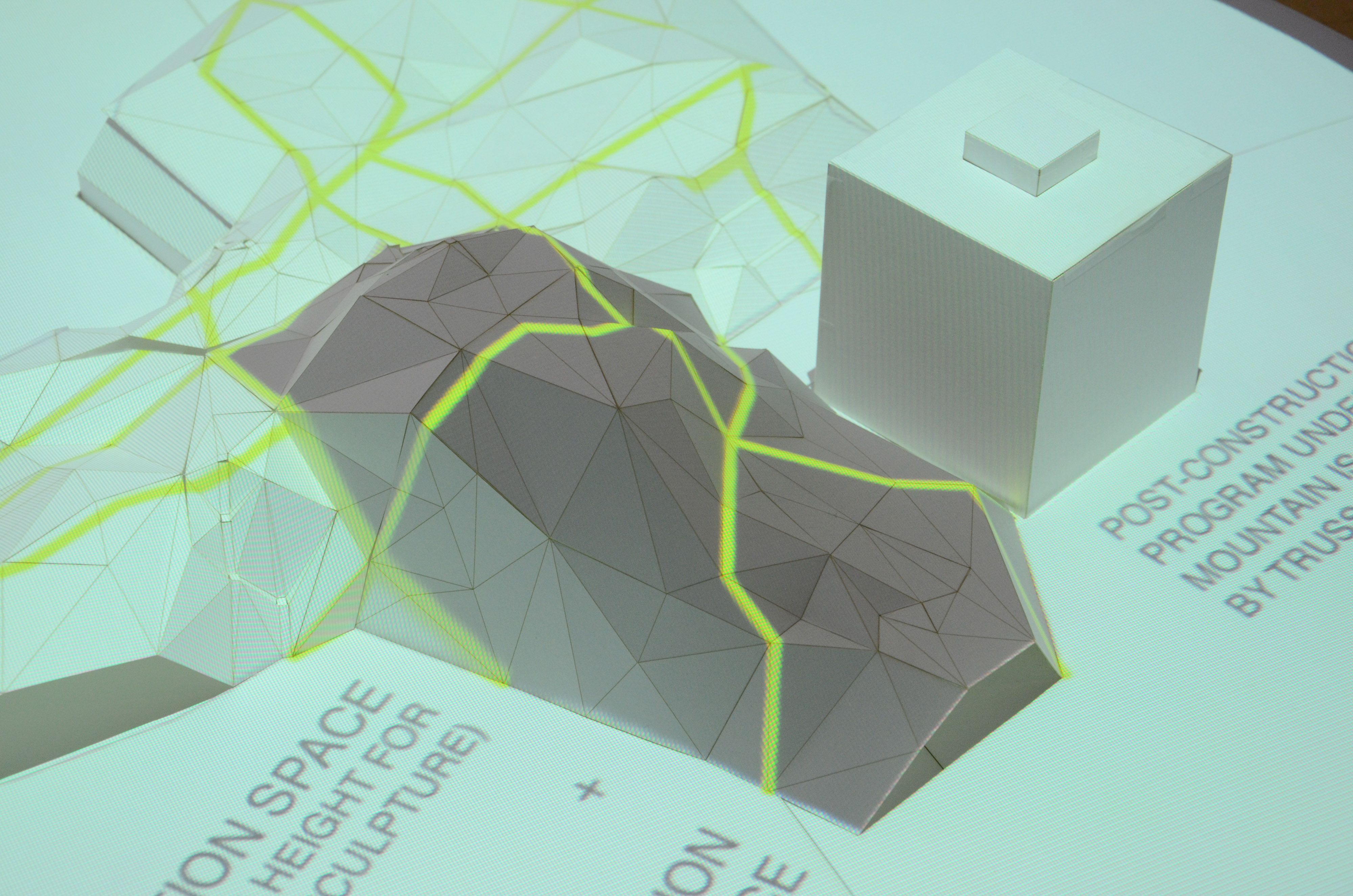

Potential under-programing delineated by truss system. Exhibition space.
Potential under-programing. Expanded exhibition space. Detail.
Potential under-programing. Formal presentation space.
Potential under-programing. Low clearance storage spaces.
Proposed printed astro-turf application.

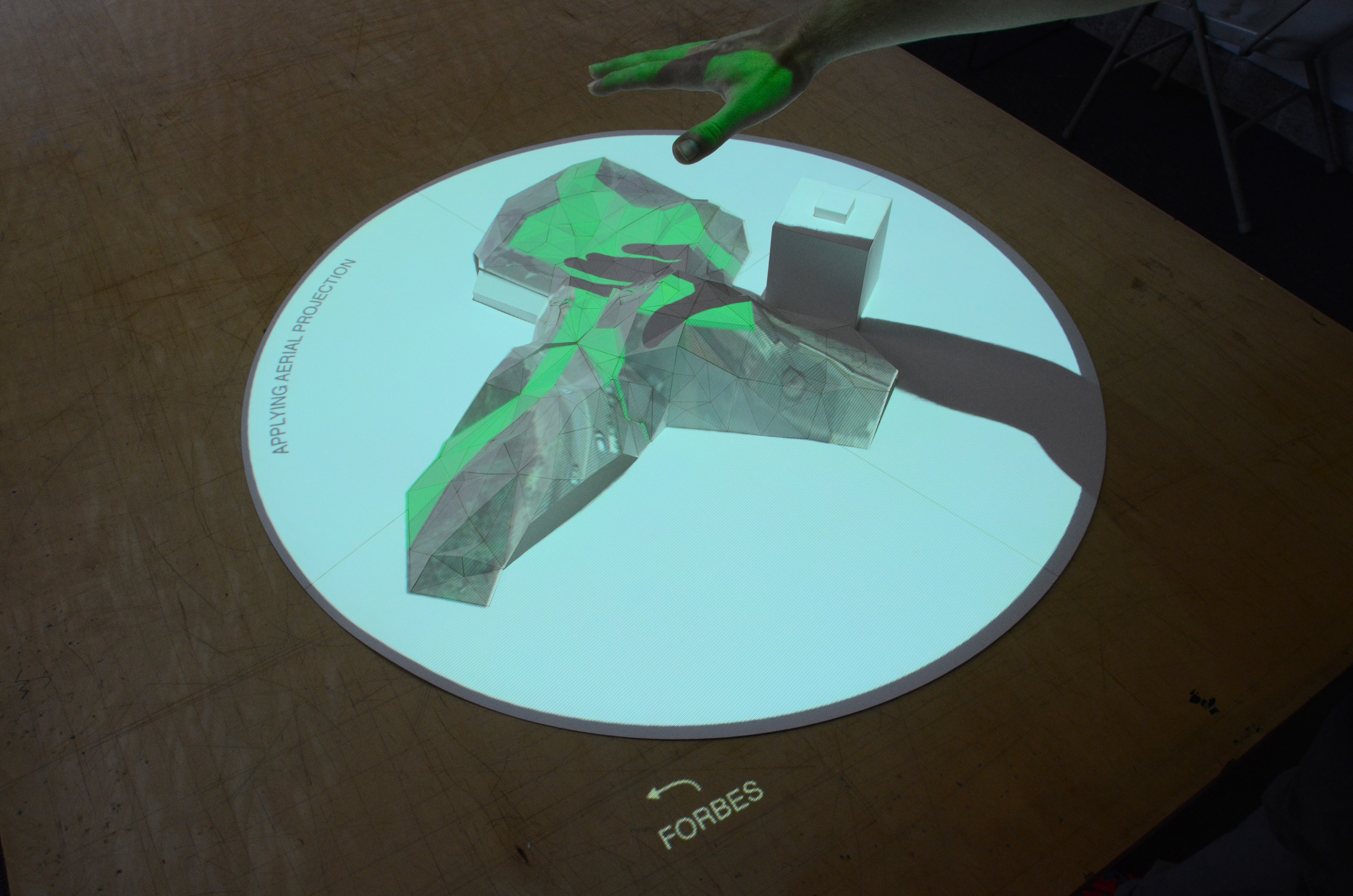

Printed areal view on mountain sheathing.
Isolated sections for printed anamorphic images.
![](https://freight.cargo.site/t/original/i/deee32637e59106e7776a6bc80773cc822cda91f3a69c2cf622de70a14a073f4/Perspective-Converted-02_o.jpg)

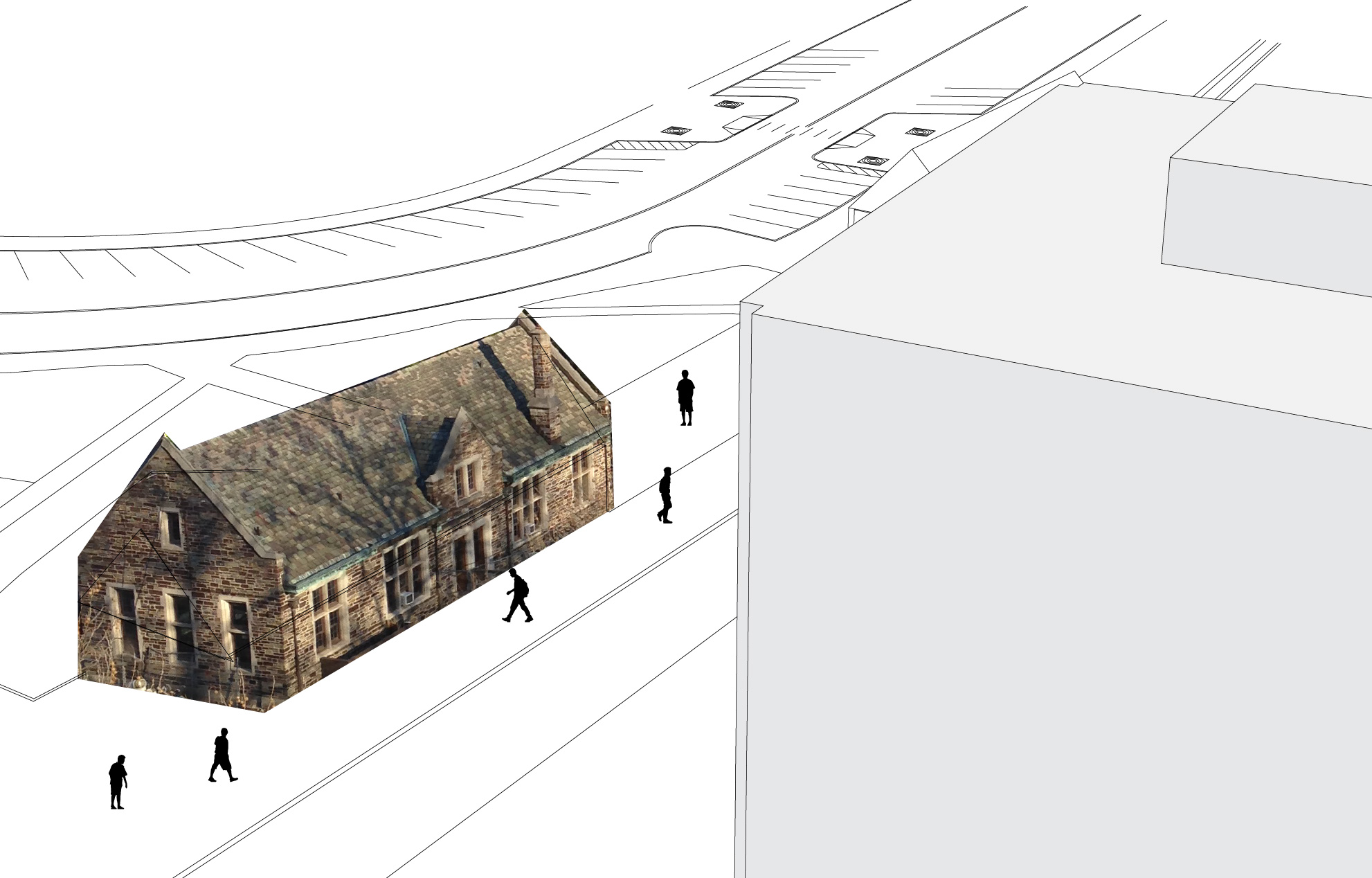

Pre-mountain.
![](https://freight.cargo.site/t/original/i/589d006eee8cd760d045947ec662a5f385519b3789e73083d28e2f781a755718/Perspective-Converted-01_o.png)

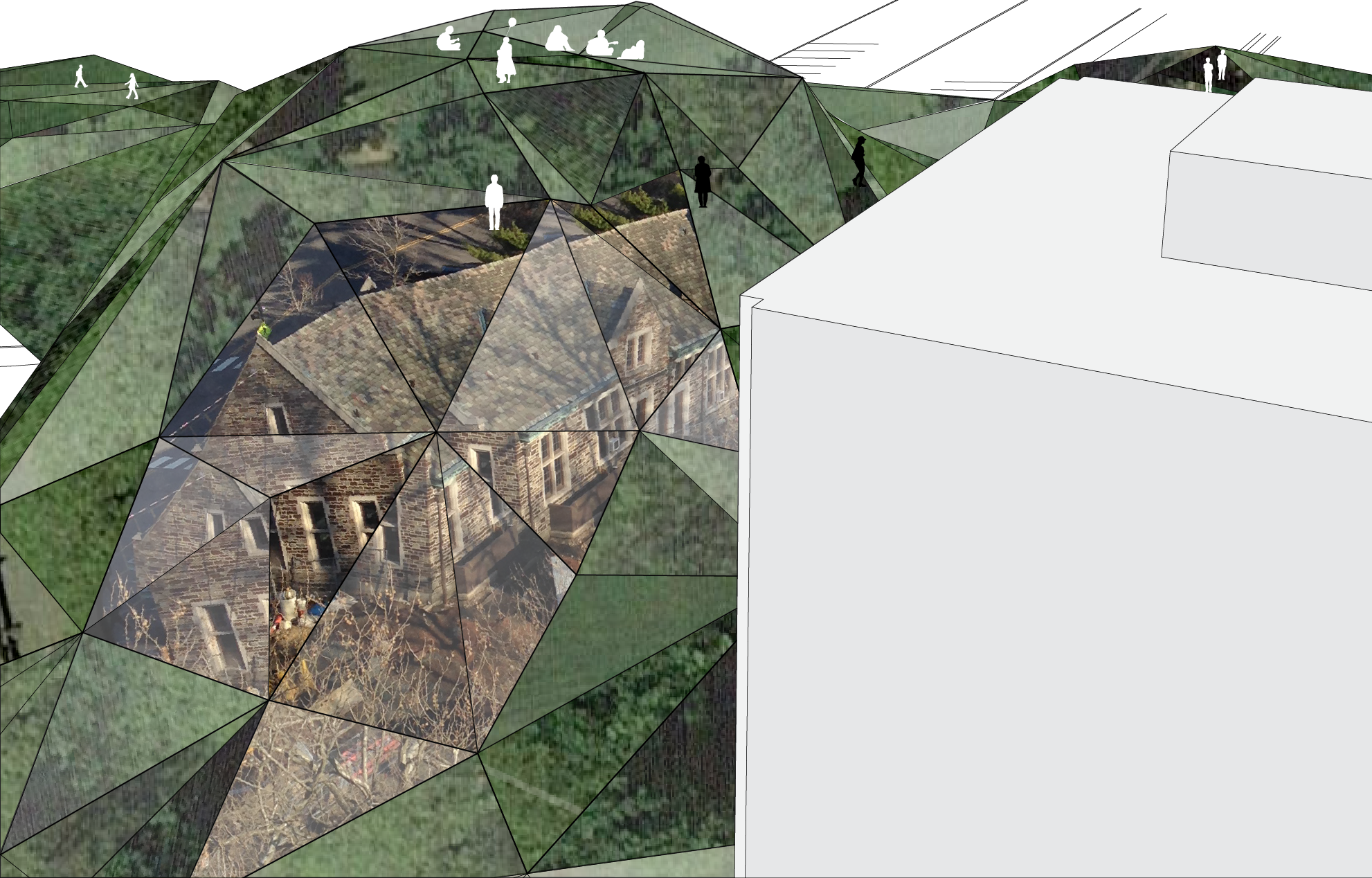

Mountain with printed anamorphic images.
![](https://freight.cargo.site/t/original/i/e9eee7352af9ebe98e64536836f01869422a039347eb26d89da0373de2ec78f1/Perspective-Converted-03_o.png)
View from specific office in New South.
Mountain hidden in context.
Detail.

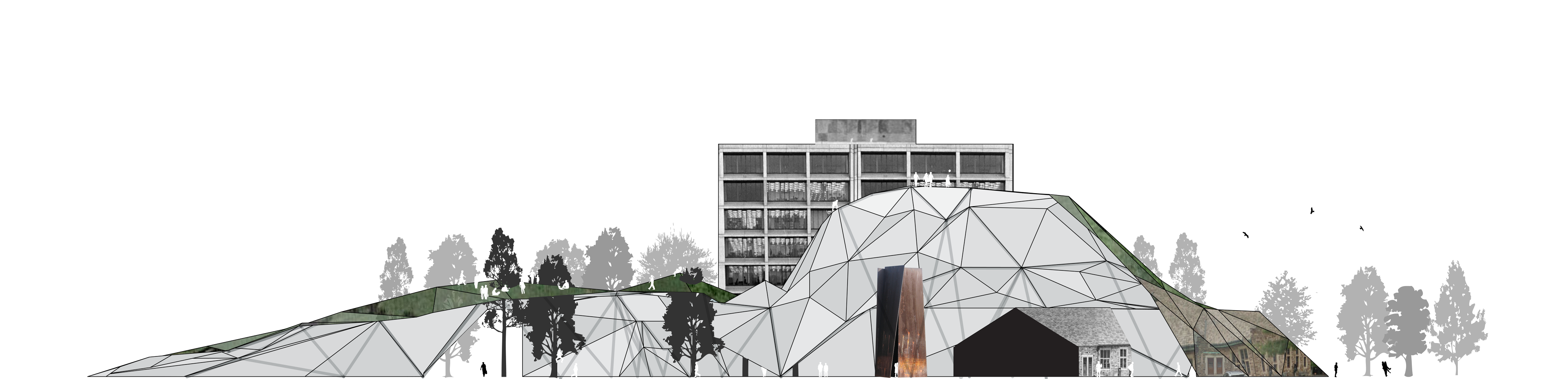

Section one.
![](https://freight.cargo.site/t/original/i/f79ccf8da40880d1ad4fb33a516c8ef206dc3a8c4e764f4ff4bd8e5e5d8e4f5b/sectonbigweb_o.png)

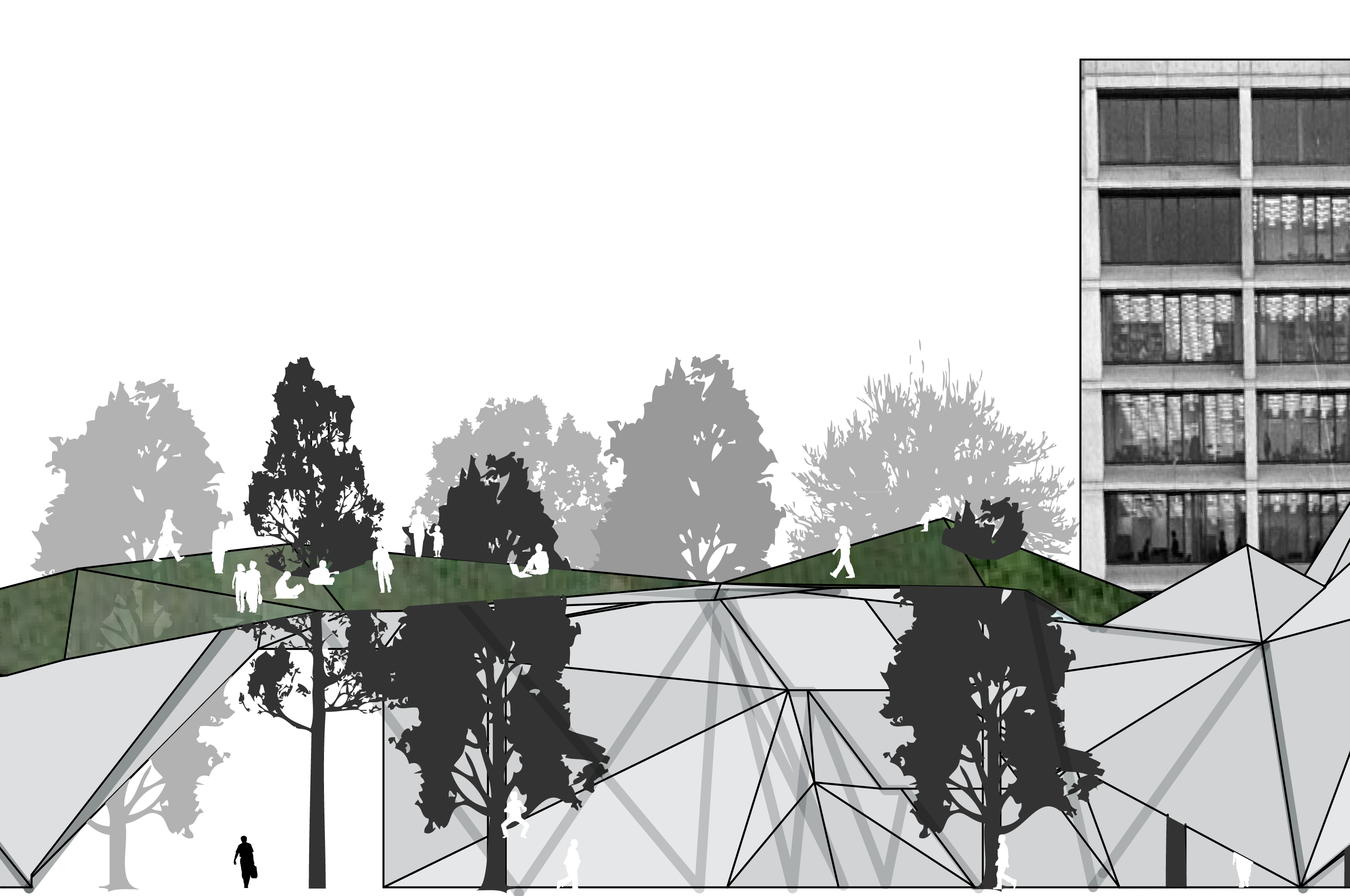

Section one. Daytime.
![](https://freight.cargo.site/t/original/i/2013ad158c73959762263c389f4f22d36732da88850c54a1c81f4fa88fcc281e/sectonbigweb1-copy_o.png)
Section one. Holes for trees to poke through.
![](https://freight.cargo.site/t/original/i/3e60dd531c7d67e441fe5df0215dbdbf3fc67af3add354366a70693011efae40/sectonbigweb2-copy_o.png)
Section one. Example of printed anamorphic image zone.
Section two.
![](https://freight.cargo.site/t/original/i/b841123edd516dadf0a161ddf1b90193d5e446578bea8283dd5b34a8859bea4e/SECTION2-Converted-01-copy_o.png)

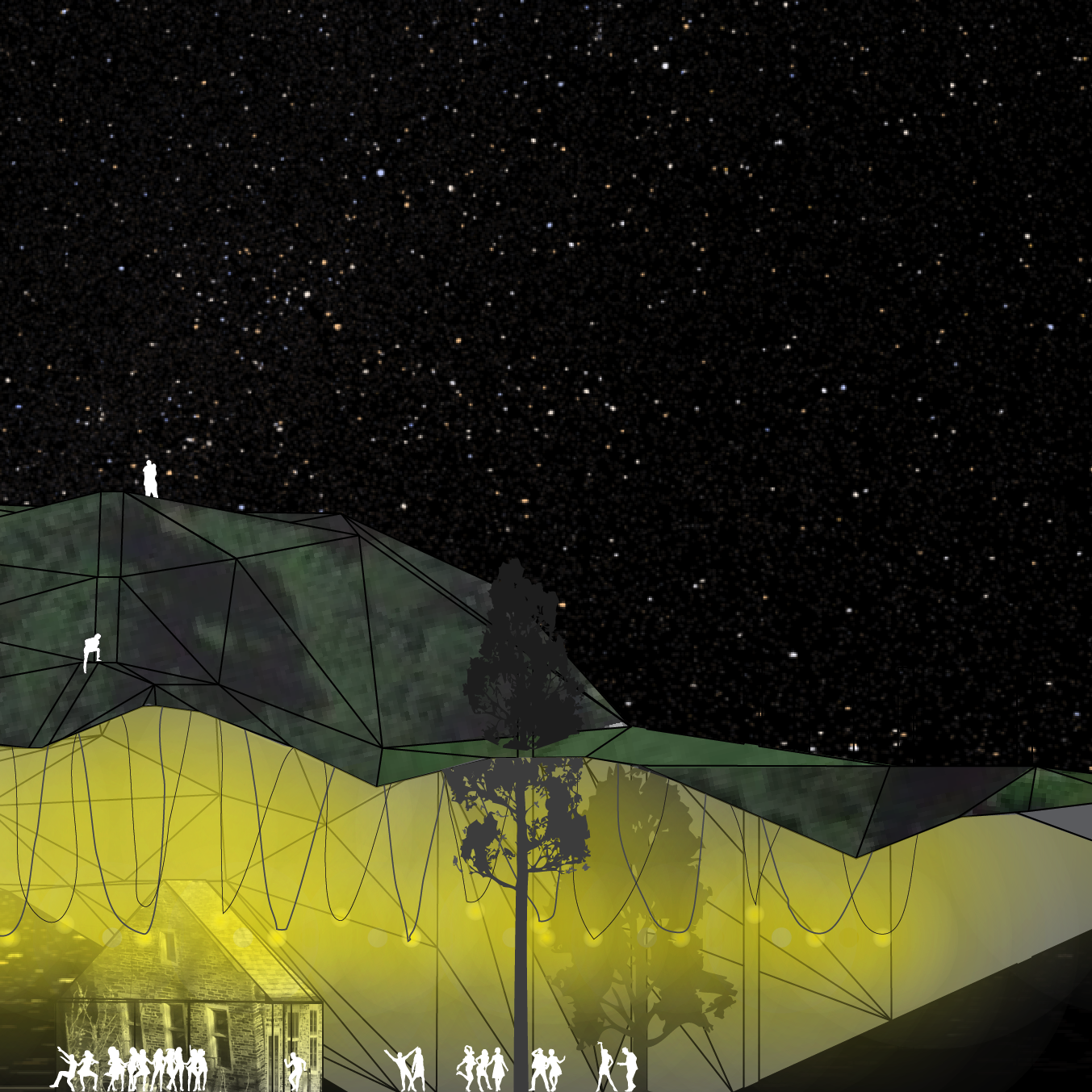

Section two. Nighttime.
![](https://freight.cargo.site/t/original/i/d2f42cf5cbc45ee0daf1faf34032f6ad5bf53f715222c9850eb9a59d4c3659ea/sectonbigweb3_o.png)
Section two. Hanging construction lights.
